Preparing Final Saturn Rocket For Flight

With the historic first international space docking mission only six months away, preparations on the ground for the Apollo-Soyuz Test Project (ASTP) intensified. At NASA's Kennedy Space Center (KSC) in Florida, workers in the Vehicle Assembly Building (VAB) stacked the rocket for the mission, the final Saturn rocket assembled for flight. In the nearby Manned Spacecraft Operations Building (MSOB), the Apollo prime crew of Commander Thomas Stafford, Command Module Pilot Vance Brand, and Docking Module Pilot Donald "Deke" Slayton, and their backups Alan Bean, Ronald Evans, and Jack Lousma conducted vacuum chamber tests of the Command Module (CM), the final Apollo spacecraft prepared for flight.

Image of the bottom end of a white rocket stage lying on its side with several workmen working on it. — Inside the Vehicle Assembly Building (VAB) at NASA's Kennedy Space Center in Florida, workers attach fins to the Saturn IB's first stage.

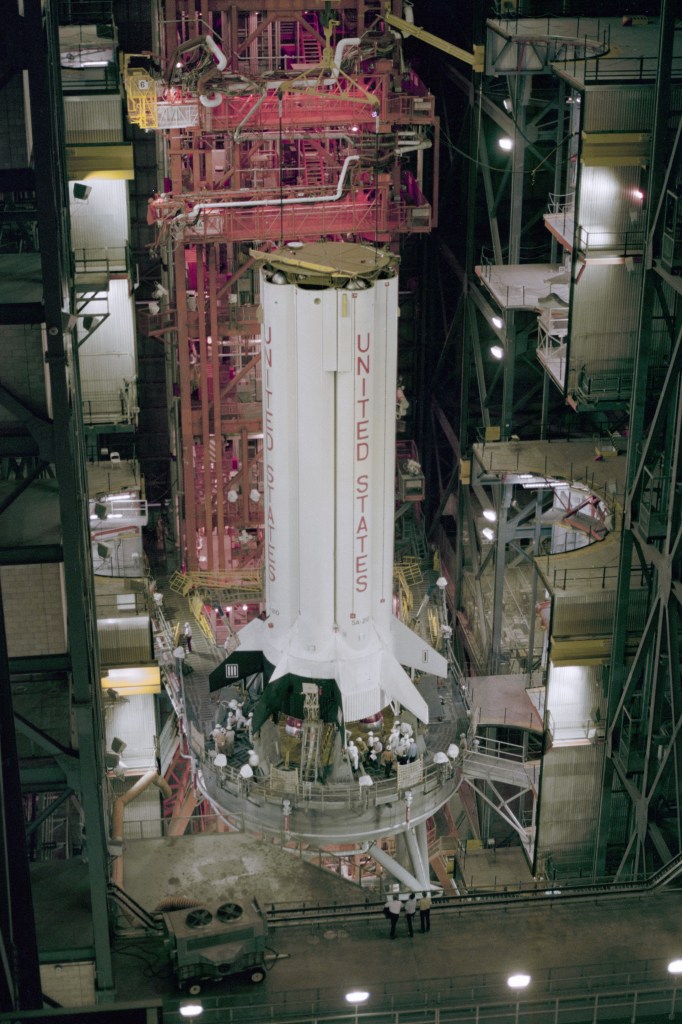

Image of a large white rocket stage inside a large assembly building — In the VAB, workers secure the first stage of the Saturn IB rocket onto the milk stool, perched on Mobile Launcher-1.

A rocket's white and black second stage is lowered onto its white first stage inside a large assembly building — Workers lift the second stage of the Saturn IB rocket prior to mating with the first stage.

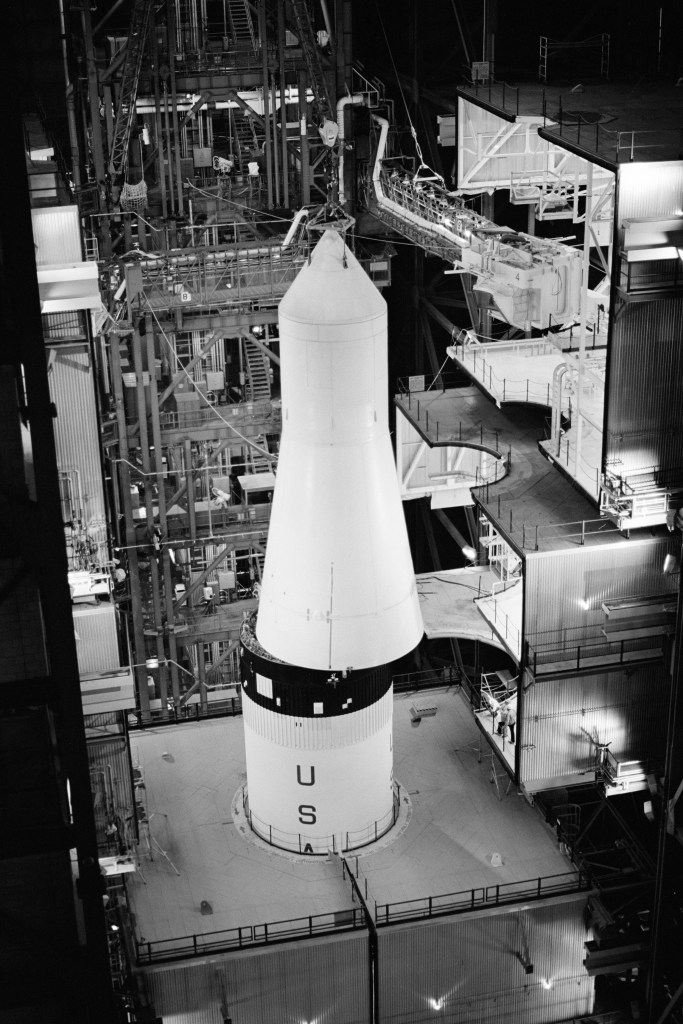

A white cone-shaped spacecraft is lifted and about to be placed atop a rocket inside a large assembly building — Workers lower a boilerplate Apollo spacecraft onto the Saturn IB rocket.

The Saturn IB rocket, serial number SA-210, used for ASTP had a lengthy history. Contractors originally built its two stages in 1967, at a time when NASA planned many more Saturn IB flights to test Apollo spacecraft components in Earth orbit in preparation for the Moon landing. By 1968, however, after four uncrewed Saturn IB launches, only one launched a crew, Apollo 7. Four more Saturn IBs remained on reserve to launch crews as part of the Apollo Applications Program, renamed Skylab in 1970. Without an immediate mission, the two stages of SA-210 entered long-term storage in 1967. Workers later modified and refurbished the stages for ASTP before shipping them to KSC. The first stage arrived in April 1974 and the second stage in November 1972.

On Jan. 13, 1975, inside the cavernous VAB, workers stacked the Saturn IB rocket's first stage onto Mobile Launcher-1 (ML-1), modified from its use to launch Saturn V rockets during the Apollo program with the addition of the milk stool pedestal. The milk stool, a 128-foot tall platform, allowed the Saturn IB to use the same Launch Umbilical Tower as the much larger Saturn V rocket at Launch Complex 39. The next day, workers lowered the second stage onto the first, followed by the Instrument Unit two days later. Finally, on Jan. 17 workers topped off the rocket with a boilerplate Apollo spacecraft while engineers continued testing the flight article in the MSOB.

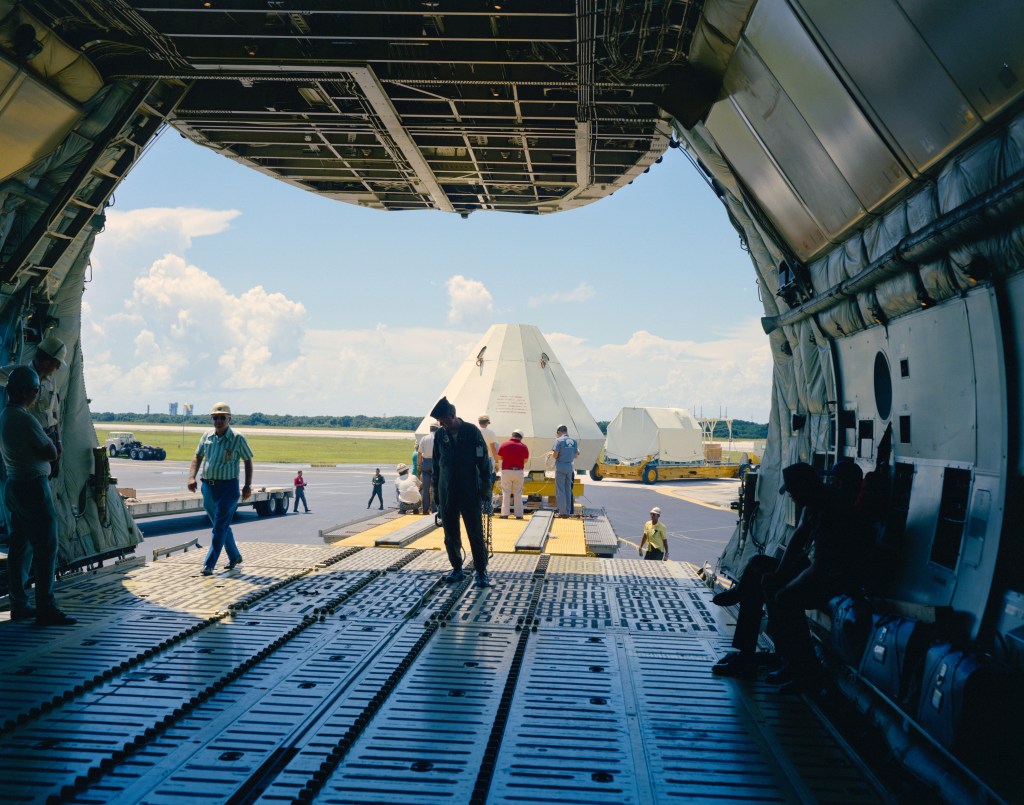

A view from inside a cargo aircraft through the open aft cargo door on a runway, with two white spacecraft being unloaded — The ASTP Apollo Command and Service Modules arrive at NASA's Kennedy Space Center (KSC) in Florida.

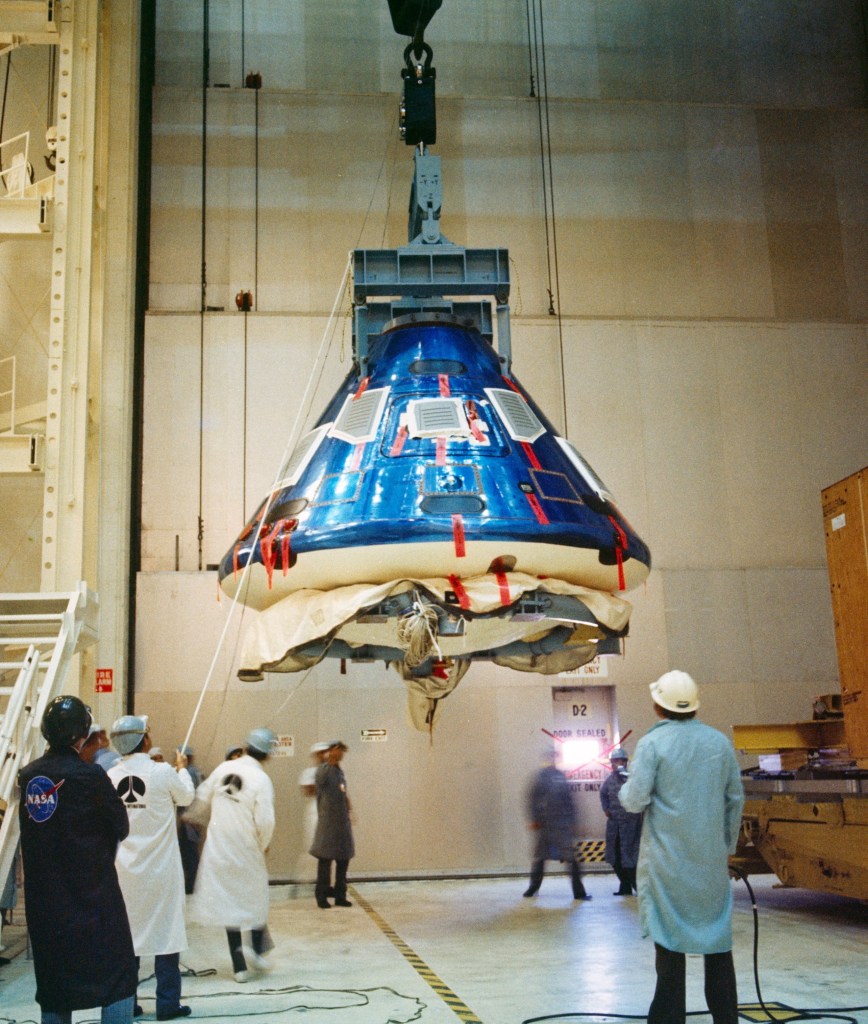

A blue cone-shaped spacecraft hanging from a crane inside a large hanger — The ASTP Command Module arrives in KSC's Manned Spacecraft Operations Building.

The Command and Service Modules - CSM-111 - arrived at KSC from the Rockwell International plant in Downey, California, on Sept. 8, 1974, by C-5A Galaxy cargo plane. Rockwell had finished building the spacecraft in March 1970 and placed it in storage until July 1972. Modifications for ASTP took place between August 1972 and August 1974, following which Rockwell shipped the spacecraft to KSC. The sign on the shipping container bore the legend "From A to Soyuz - Apollo/Soyuz - Last and the Best." Workers at KSC towed the modules to the MSOB for inspection and checkout, joined the two modules, and placed the combined spacecraft into a vacuum chamber.

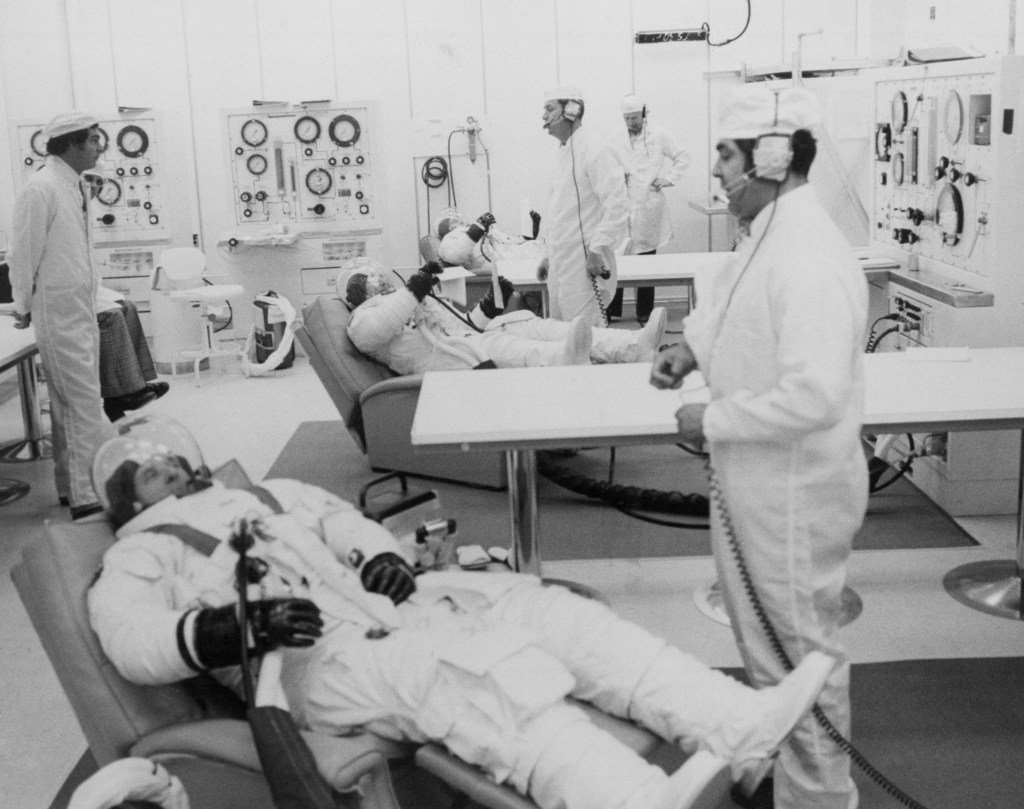

Black and white image of three astronauts in recliners wearing white spacesuits with technicians assisting them — The prime Apollo crew of Thomas Stafford, left, Vance Brand, and Donald "Deke" Slayton suit up in preparation for an altitude chamber test in the Command Module (CM).

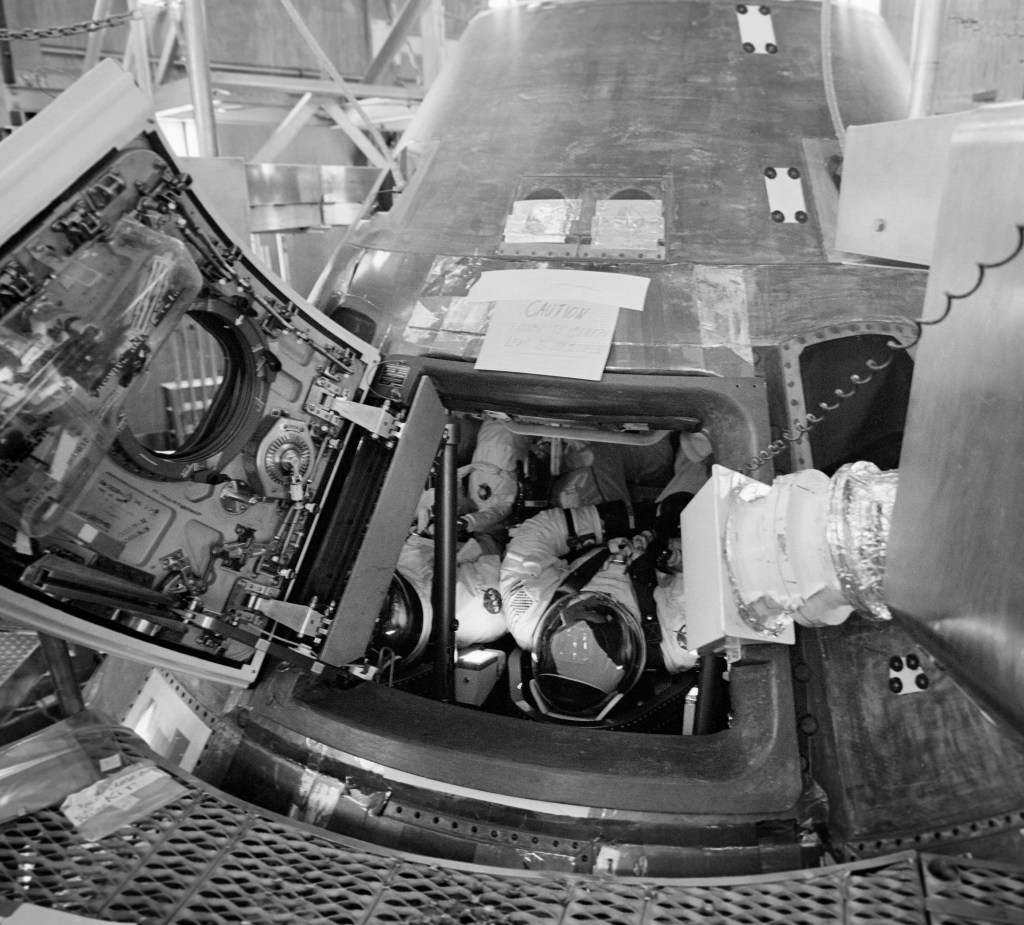

Black and white image of a cone-shaped spacecraft, with three spacesuited astronauts visible through the open hatch — The astronauts inside the CM in the altitude chamber.

In the MSOB, the prime and backup ASTP crews conducted tests of their spacecraft in an altitude chamber. After both crews completed simulated runs in December 1974, the prime crew of Stafford, Brand, and Slayton suited up, entered the CM inside the chamber, closed the hatch, and conducted an actual test on Jan. 14, with the chamber simulating altitudes of up to 220,000 feet. Two days later, the backup crew of Bean, Evans, and Lousma completed a similar test.

Color image of three astronauts in white spacesuits in recliners with technicians assisting them — he backup Apollo crew of Alan Bean, left, Ronald Evans, and Jack Lousma suit up in preparation for an altitude chamber test in the Command Module (CM).

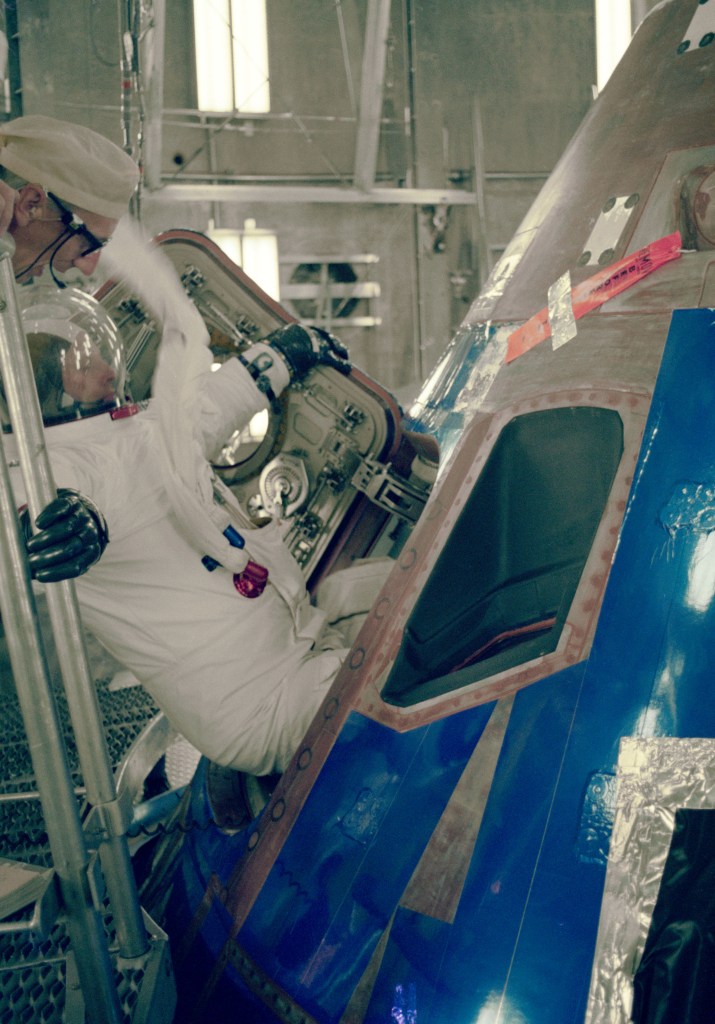

A white suited astronauts entering a blue coated spacecraft — Workers assist backup crewmember Lousma into the CM.

To solve the problem of the Apollo and Soyuz spacecraft operating at different atmospheric pressures and compositions and using incompatible docking mechanisms, engineers designed a Docking Module (DM) that acted as both an airlock and a transfer tunnel and a Docking System (DS) that allowed the two nations' spacecraft to physically join in space. NASA contracted with Rockwell International to build the DM. Engineers equipped one end of the DM with the standard Apollo probe-and-drogue docking mechanism and the other end with the androgynous system that linked up with its opposite half installed on the modified Soyuz spacecraft. During launch, the DM rested inside the Spacecraft Lunar Module (LM) Adaptor (SLA) atop the rocket's upper stage, much like the LM during Apollo flights. Once in orbit, the astronauts separated the CSM from the upper stage, turned the spacecraft around, docked with the DM and pulled it free.

Black and white image of two spacecraft components with white coated technicians in a large room — Workers lower the DM into Chamber B in the Space Environment Simulation Laboratory at NASA's Johnson Space Center in Houston.

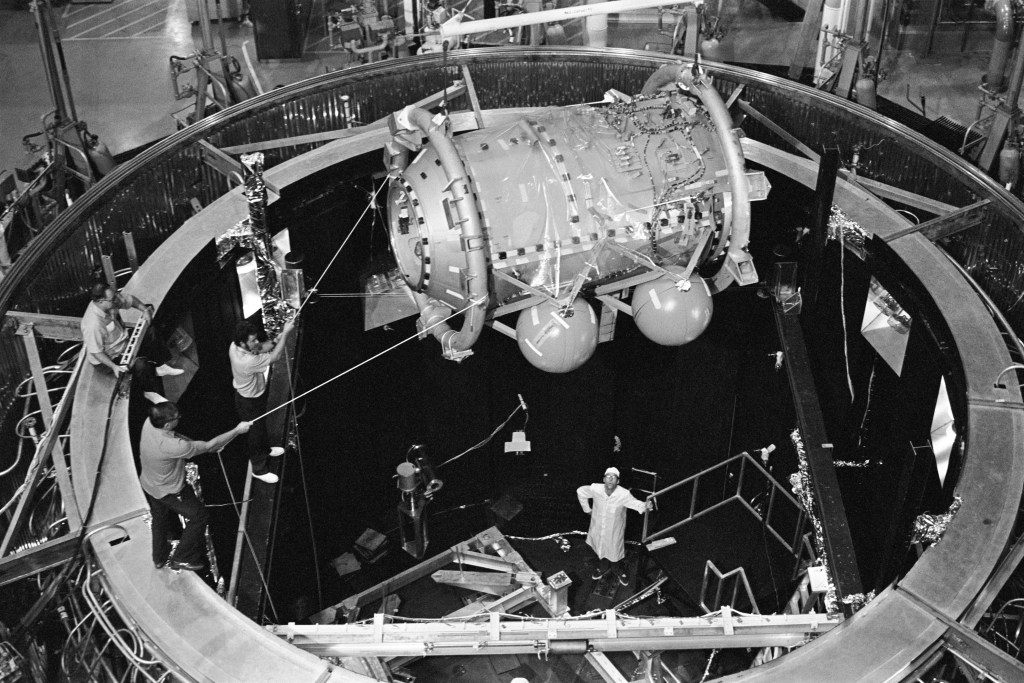

Black and white image of a cylindrical spacecraft being lowered into an altitude chamber — Workers lower the DM into Chamber B in the Space Environment Simulation Laboratory at NASA's Johnson Space Center in Houston.

After extensive vacuum testing in Chamber B of the Space Environment Simulation Laboratory at NASA's Johnson Space Center in Houston, the flight DM arrived at KSC on Oct. 29, 1974, and workers prepared it for more testing in a vacuum chamber in the MSOB. The flight DS arrived at KSC on Jan. 3, 1975, and two weeks later workers installed it on the DM. On Jan. 27, engineers lowered the DM onto the CM in the altitude chamber to conduct a mechanical docking test. Engineers conducted 10 days of joint tests of television and audio equipment to ensure systems compatibility.

Workers lower a cylindrical spacecraft onto a cone shaped docking target in an altitude chamber — Workers conduct a docking test of the Docking Module with the Command Module at NASA's Kennedy Space Center in Florida.

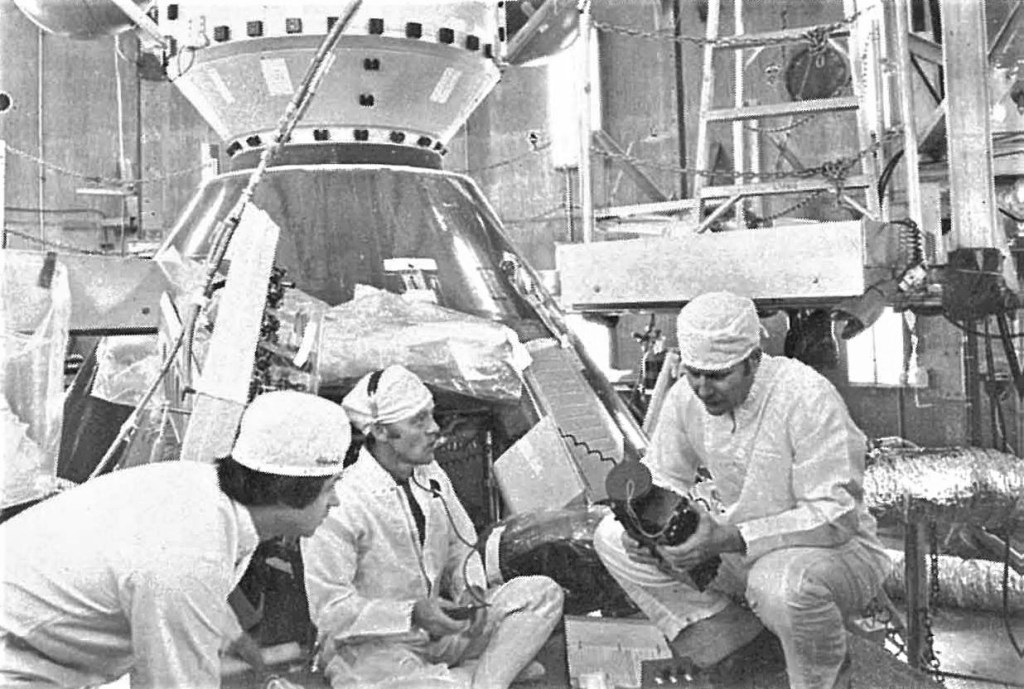

Black and white image of several white coated technicians with a partial view of a spacecraft in the background — NASA support astronaut Robert Overmyer, right, works with engineers during compatibility testing.

To be continued…
