Webb Captures Young Exoplanets, Finds CO2

5 Min Read
This image shows the planetary system HR 8799. The background is black. At the center there is a symbol representing a star labeled HR 8799. The star's light is blocked. There are four exoplanets, which look like fuzzy dots, pictured surrounding the star. Furthest from the star is a fuzzy, faint blue dot, labeled b, at the 10 o'clock position. At the 1 o'clock position, second furthest from the star is a blueish-white fuzzy dot labeled c. Just below that is an orange dot labeled e. At the 4 o'clock position, still near the star, is another fuzzy white dot labeled d.
NASA's James Webb Space Telescope has provided the clearest look in the infrared yet at the iconic multi-planet system HR 8799. Full image below.
Credits:

NASA, ESA, CSA, STScI, W. Balmer (JHU), L. Pueyo (STScI), M. Perrin (STScI)

NASA's James Webb Space Telescope has captured direct images of multiple gas giant planets within an iconic planetary system. HR 8799, a young system 130 light-years away, has long been a key target for planet formation studies.

The observations indicate that the well-studied planets of HR 8799 are rich in carbon dioxide gas. This provides strong evidence that the system's four giant planets formed much like Jupiter and Saturn, by slowly building solid cores that attract gas from within a protoplanetary disk, a process known as core accretion.

The results also confirm that Webb can infer the chemistry of exoplanet atmospheres through imaging. This technique complements Webb's powerful spectroscopic instruments, which can resolve the atmospheric composition.

"By spotting these strong carbon dioxide features, we have shown there is a sizable fraction of heavier elements, like carbon, oxygen, and iron, in these planets' atmospheres," said William Balmer, of Johns Hopkins University in Baltimore. "Given what we know about the star they orbit, that likely indicates they formed via core accretion, which is an exciting conclusion for planets that we can directly see."

Balmer is the lead author of the study announcing the results published today in The Astrophysical Journal. Balmer and their team's analysis also includes Webb's observation of a system 97 light-years away called 51 Eridani.

Image A: HR 8799 (NIRCam Image)

NASA's James Webb Space Telescope has provided the clearest look in the infrared yet at the iconic multi-planet system HR 8799. The closest planet to the star, HR 8799 e, orbits 1.5 billion miles from its star, which in our solar system would be located between the orbit of Saturn and Neptune. The furthest, HR 8799 b, orbits around 6.3 billion miles from the star, more than twice Neptune's orbital distance. Colors are applied to filters from Webb's NIRCam (Near-Infrared Camera), revealing their intrinsic differences. A star symbol marks the location of the host star HR 8799, whose light has been blocked by the coronagraph. In this image, the color blue is assigned to 4.1 micron light, green to 4.3 micron light, and red to the 4.6 micron light.
NASA, ESA, CSA, STScI, W. Balmer (JHU), L. Pueyo (STScI), M. Perrin (STScI)

Image B: 51 Eridani (NIRCam Image)

Webb's NIRCam (Near-Infrared Camera) captured this image of 51 Eridani b (also referred to as 51 Eri b), a cool, young exoplanet that orbits 890 million miles from its star, similar to Saturn's orbit in our solar system. The 51 Eridani system is 97 light-years from Earth. This image includes filters representing 4.1-micron light as red. The background red in this image is not light from other planets, but a result of light subtraction during image processing.
NASA, ESA, CSA, STScI, W. Balmer (JHU), L. Pueyo (STScI), M. Perrin (STScI)

HR 8799 is a young system about 30 million years old, a fraction of our solar system's 4.6 billion years. Still hot from their tumultuous formation, the planets within HR 8799 emit large amounts of infrared light that give scientists valuable data on how they formed.

Giant planets can take shape in two ways: by slowly building solid cores with heavier elements that attract gas, just like the giants in our solar system, or when particles of gas rapidly coalesce into massive objects from a young star's cooling disk, which is made mostly of the same kind of material as the star. The first process is called core accretion, and the second is called disk instability. Knowing which formation model is more common can give scientists clues to distinguish between the types of planets they find in other systems.

"Our hope with this kind of research is to understand our own solar system, life, and ourselves in the comparison to other exoplanetary systems, so we can contextualize our existence," Balmer said. "We want to take pictures of other solar systems and see how they're similar or different when compared to ours. From there, we can try to get a sense of how weird our solar system really is-or how normal."

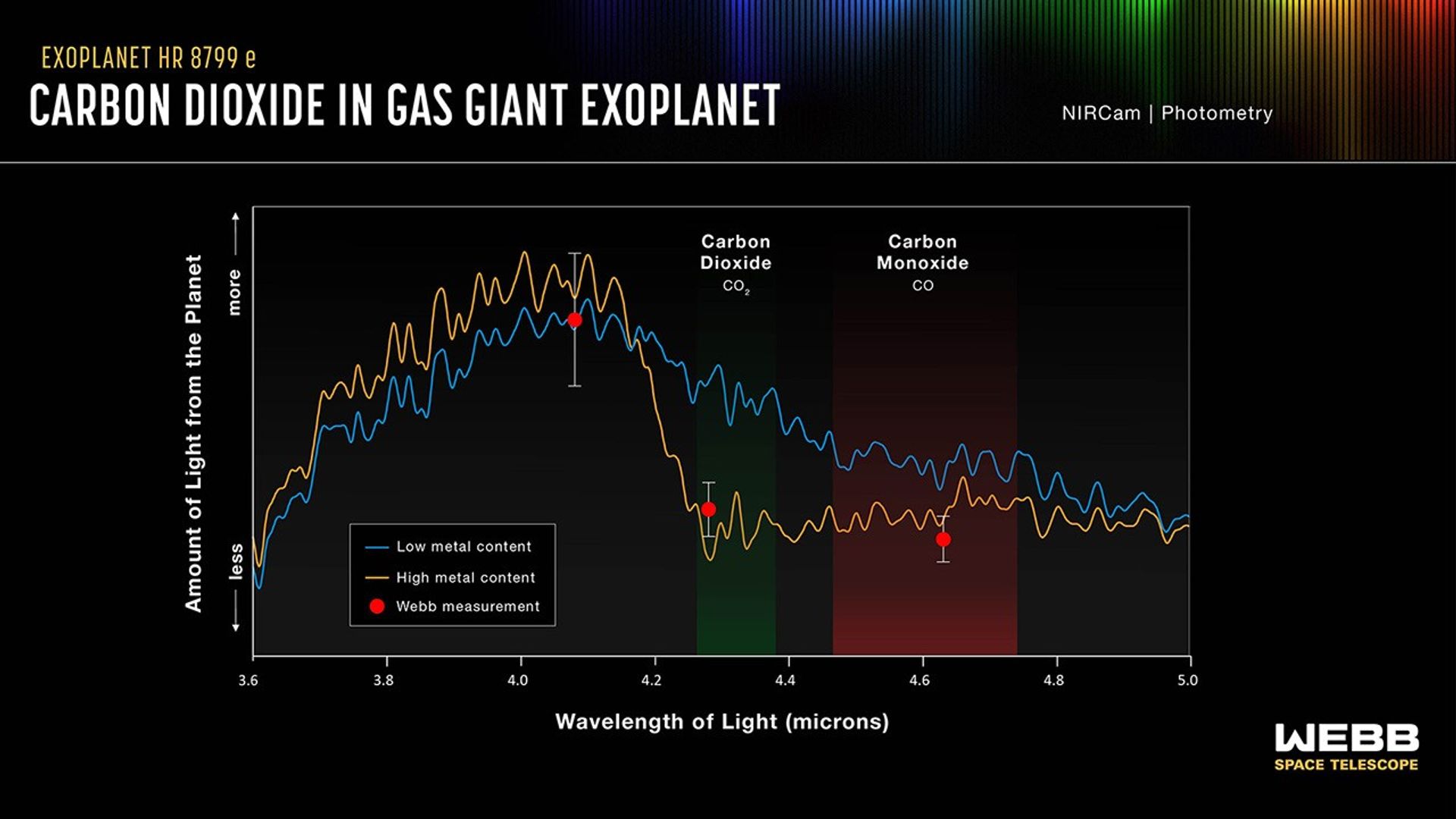

Image C: Young Gas Giant HR 8799 e (NIRCam Spectrum)

This graph shows a spectrum of one of the planets in the HR 8799 system, HR 8799 e. Spectral fingerprints of carbon dioxide and carbon monoxide appear in data collected by Webb's NIRCam (Near-Infrared Camera).
NASA, ESA, CSA, STScI, J. Olmsted (STScI)

Of the nearly 6,000 exoplanets discovered, few have been directly imaged, as even giant planets are many thousands of times fainter than their stars. The images of HR 8799 and 51 Eridani were made possible by Webb's NIRCam (Near-Infrared Camera) coronagraph, which blocks light from bright stars to reveal otherwise hidden worlds.

This technology allowed the team to look for infrared light emitted by the planets in wavelengths that are absorbed by specific gases. The team found that the four HR 8799 planets contain more heavy elements than previously thought.

The team is paving the way for more detailed observations to determine whether objects they see orbiting other stars are truly giant planets or objects such as brown dwarfs, which form like stars but don't accumulate enough mass to ignite nuclear fusion.

"We have other lines of evidence that hint at these four HR 8799 planets forming using this bottom-up approach" said Laurent Pueyo, an astronomer at the Space Telescope Science Institute in Baltimore, who co-led the work. "How common is this for planets we can directly image? We don't know yet, but we're proposing more Webb observations to answer that question."

"We knew Webb could measure colors of the outer planets in directly imaged systems," added Rémi Soummer, director of STScI's Russell B. Makidon Optics Lab and former lead for Webb coronagraph operations. "We have been waiting for 10 years to confirm that our finely tuned operations of the telescope would also allow us to access the inner planets. Now the results are in and we can do interesting science with it."

The NIRCam observations of HR 8799 and 51 Eridani were conducted as part of Guaranteed Time Observations programs 1194 and 1412 respectively.

The James Webb Space Telescope is the world's premier space science observatory. Webb will solve mysteries in our solar system, look beyond to distant worlds around other stars, and probe the mysterious structures and origins of our universe and our place in it. Webb is an international program led by NASA with its partners, ESA (European Space Agency) and the Canadian Space Agency.

Downloads

Click any image to open a larger version.

View/Download all image products at all resolutions for this article from the Space Telescope Science Institute.

View/Download the research results from The Astrophysical Journal.
